The new TENADO METALL 3D

From stairs to complex steel structures: With the new TENADO METALL 3D, you can work efficiently, easily and even faster thanks to the CAD core of Autodesk Inventor. TENADO METALL 3D is perfectly tailored to the requirements of the industry and equipped with intelligent design aids, point cloud function, evaluations and generators for stairs, railings and much more.

Efficiently designed, professionally implemented - the new TENADO METALL 3D

The fast CAD core of Autodesk Inventor guarantees you impressive performance, while the industry-specific metal add-on from TENADO provides you with intuitive drawing tools. This allows you to design exactly what your customers want in a simple, efficient and highly professional manner.

Practical generators reduce your construction effort: fences, railings or stairs can be created in no time at all. You will find parts and sawing lists in the appropriate evaluations. Save time and work even more precisely thanks to the new point cloud function and meet the requirements of municipal tenders, because with TENADO METALL 3D you now also have a Revit connection and can therefore work in compliance with BIM.

Get to know the new TENADO METALL 3D, the strong partner at the side of metalworking distributors. Register now for the kick-off webinar on July 3!

Powerful tools for impressive results

With TENADO METALL 3D, you have comprehensive 3D CAD software at your fingertips, including all standard functions and much more: 3D modeling, sheet metal processing, 2D derivations, dimensioning, parametrics with rule creation thanks to iLogic and rendering.

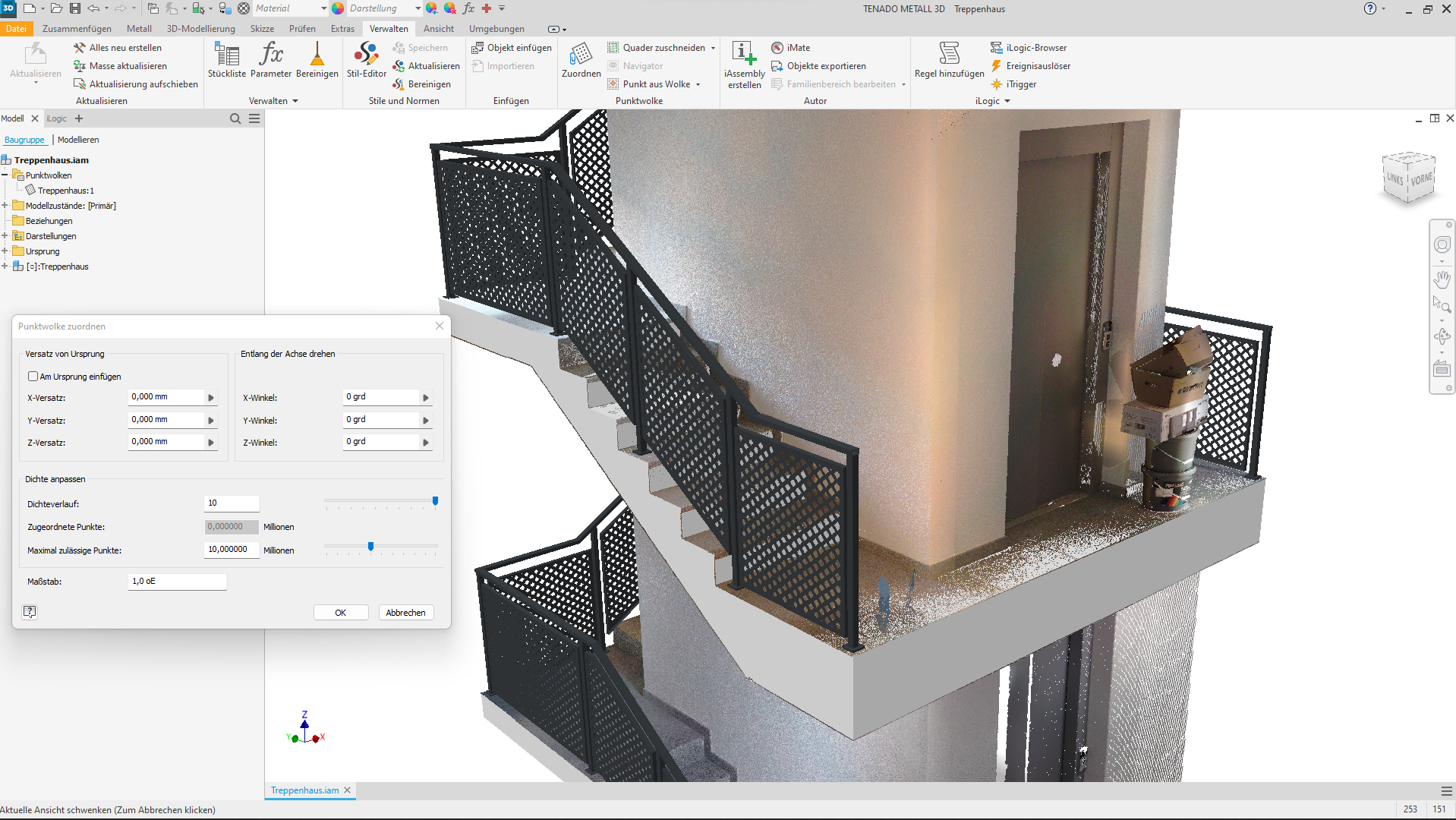

From point to image

Bring the environment of your design or already completed partial designs into your software with millimeter precision. Use the TENADO partner Flexijet or other 3D lasers, all dimensions and objects can be displayed with point clouds in TENADO METALL 3D.

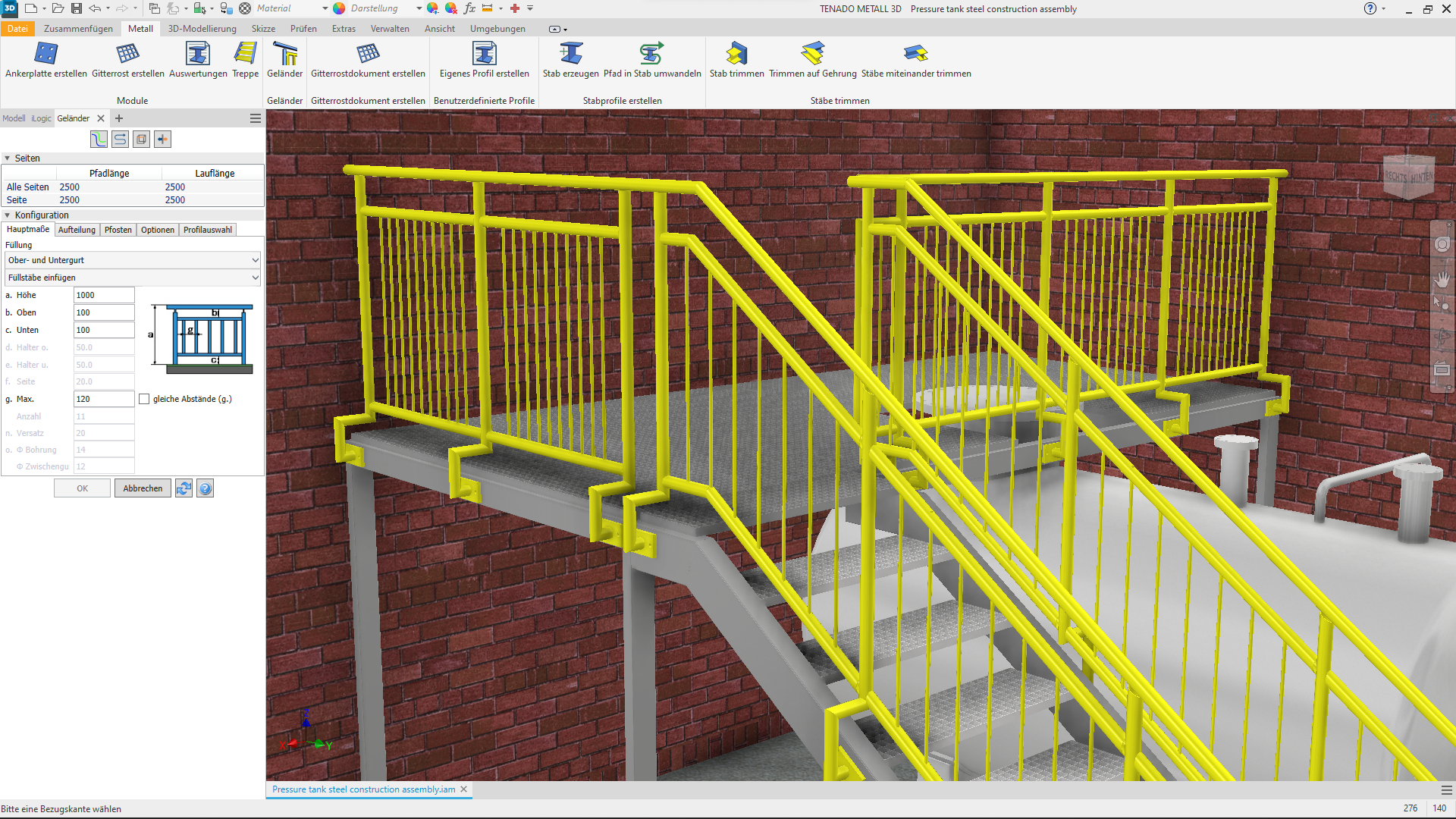

Stairs and banisters - Have them drawn

With the integrated generators in TENADO METALL 3D, you can create stairs and railings precisely and quickly. Enter the dimensions, select the material and design – the system automatically creates a 3D model. Individual components can be customized, and even complex requirements or special designs can be implemented quickly.

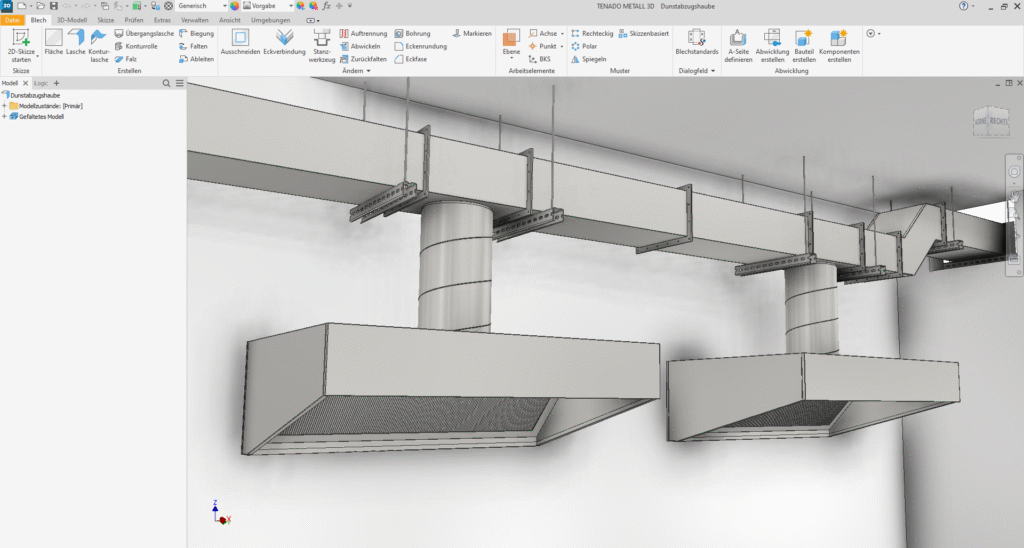

Sheet metal processing of the next generation

Punching, bending, unwinding, creating contour rolls – with TENADO METALL 3D you are prepared for any challenge. In the sheet metal processing tool, you can design parametrically, control the material behavior, bend, cut, create bends or markings – the dynamic 3D preview shows you every step of the way.

Your insight into the new TENADO METALL 3D

Get to know the new TENADO METALL 3D in the webinar! Our product experts will introduce you to the impressive new functions of our software and show you which features will impress you and make your day-to-day work easier.

Your tools for efficient work

Staff function

Anchor plates

Industrial stairs

Gratings

Evaluation

Staff function

Anchor plates

Industrial stairs

Gratings

Evaluation

References

We asked beta tester and master metalworker Lukas Brohammer which functions in the new TENADO METALL 3D particularly impressed him. His answer: “Point clouds and an improved product structure. And I assume that you can handle larger projects even better with this TENADO METALL 3D.”

Lukas Brohammer

Master metalworker and owner BroCAD

Training and support

Do you want to work efficiently and make the most of the advantages of TENADO METALL 3D? Take part in one of our online or on-site training courses. Do you need help with your projects? Our German-speaking support team is at your side.

System requirements

In order to run TENADO METALL 3D, your computer must meet certain minimum requirements. We have also put together some hardware recommendations for you. This will enable you to make even better use of the functions of your TENADO software.

The operating system: Windows 10 or Windows 11

Minimum requirements

Processor: 2.5 GHZ or higher
Graphics card: 1 GB GPU with 29GB/S bandwidth and DirectX compatible
Memory: 16 GB RAM for designs with less than 500 parts

Our hardware recommendation

Processor: 3.0 GHZ or higher
Graphics card: 4 GB GPU with 106 GB/S bandwidth and DirectX compatible
Memory: 32 GB RAM or more
